Electric Rotary Vane Air and Gas XD Vacuum Pump

FOB Reference Price:Get Latest Price
$50.00 - $750.00 / Unit | 1 Unit/Units XD vacuum pump (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Zhongde
Model Number:
XD040
Structure:
Single-stage Pump
Pressure:
Middle pressure
Product name:
XD vacuum pump
Casing material:
Cast iron, Aluminium alloy, Stainless steel
Voltage:
380V
Driver:
Electric motor
Installation position:
Horizontal
Operating temperature:
80℃
Use For:
machinery, petroleum, chemical, papermaking, medicine, food, etc
Warranty:
One year
Company:
Manufacture
Power:
Electric
Standard or Nonstandard:
Standard
Theory:
Vacuum Pump
Fuel:
Electric
Application:
Air Pump
Usage:
Air and gas
Supply Ability
Supply Ability:
2000 Unit/Units per Month XD vacuum pump
Packaging & Delivery
Packaging Details
XD vacuum pump packing: Standard export package
Port
Guangzhou/ Shenzhen
Lead Time :
Within 2 days after recieved the deposit

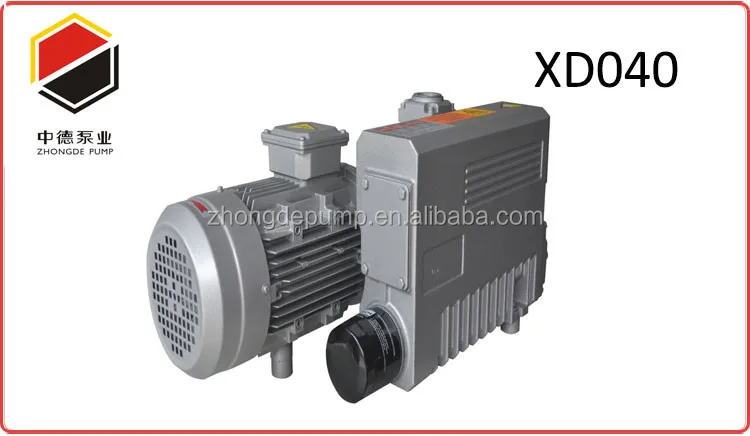

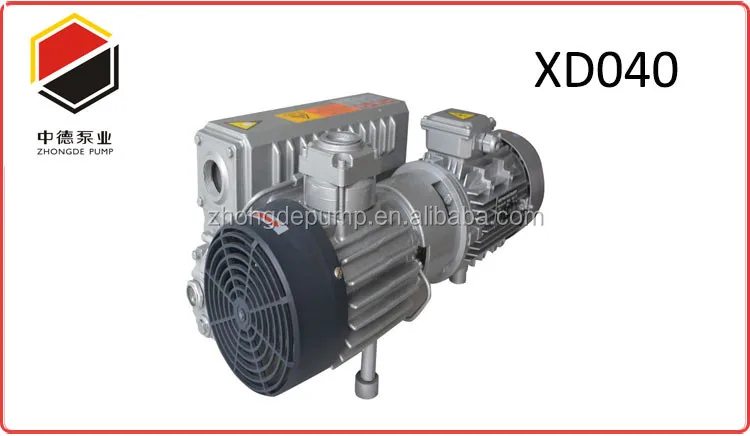

Electric Rotary Vane Air and Gas XD Vacuum Pump

vacuum-pump-1.jpgXD vacuum pump -2.jpgXD vacuum pump -3.jpg



Product Description

1- Simple structure, Easy operation, Easy maintenance

2- The pump is equipped with automatic air isolation valve. Air inlet isolation valve would isolate of pumped system automatically when the pump stops. Can prevent the pump oil back into the pumping system.

3- With oil mist eliminator, can eliminate the oil vapor effectively in the exhaust. So it not need the exhaust pipe.

4- Stable, Low vibration, Can be placed on a level surface work without foot bolt.

5- The products are widely used in machinery, petroleum, chemical, papermaking, medicine, sugar, food, electronics, metallurgy, ceramics, building materials, plastic, printing and dyeing, water diversion, water supply in high-rise building etc.





XD vacuum pump specifications:

Product Name

Vacuum Pump

Item No.

XD040

Voltage

220/ 380V

Frequency

50/ 60Hz

Noise (db)

≤65

Accept water vapor pressure(mbar)

40

Water vapor exhaust (kg/h)

0.6

Operating temperature(℃)

80

Inlet thread

RP 1/4"

Application

Air & gas

Warranty:

One year







XD vacuum pump data:



Item No.

XD-20

XD-40

XD-63B

XD-63

XD-100

XD-160

XD-200

XD-250

XD-302

Pumping capacity(m3/h)

20

40

63

63

100

160

200

250

300

Ultimate vacuum pressure(Pa)

2*102

2*102

2*102

2*102

2*102

2*102

2*102

2*102

2*102

Motor power(kW)

0.75

1.5

1.5

2.2

3

4

4.5

5.5

7.5

Speed(r/min)

2800

1450

1450

1450

1450

1450

1450

1450

1450

Inlet(mm)

G1/2''

G11/4''

G11/4''

G11/4''

G11/4''

G2''

G2''

G1/2''

G2''

Oil consumption amount(L)

0.5

1

2

2

2

5

5

5

7

Weight(kg)

20

60

65

70

83

132

150

195

211

Size(L*W*H)

650*300*280

650*300*280

650*430*295

650*430*295

720*430*295

85*50.5*44

85*50.5*44

98*56*44

101*56*44

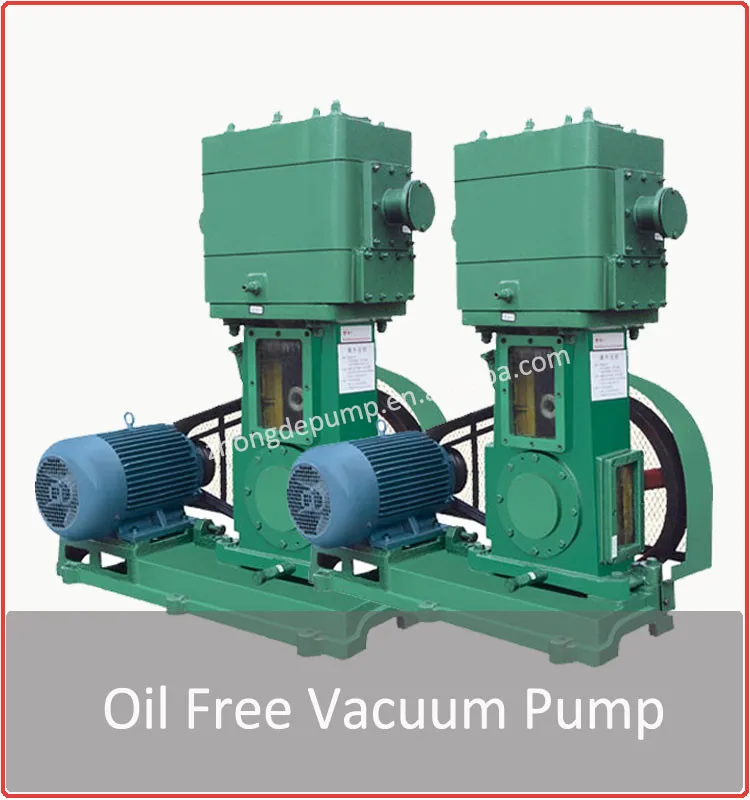

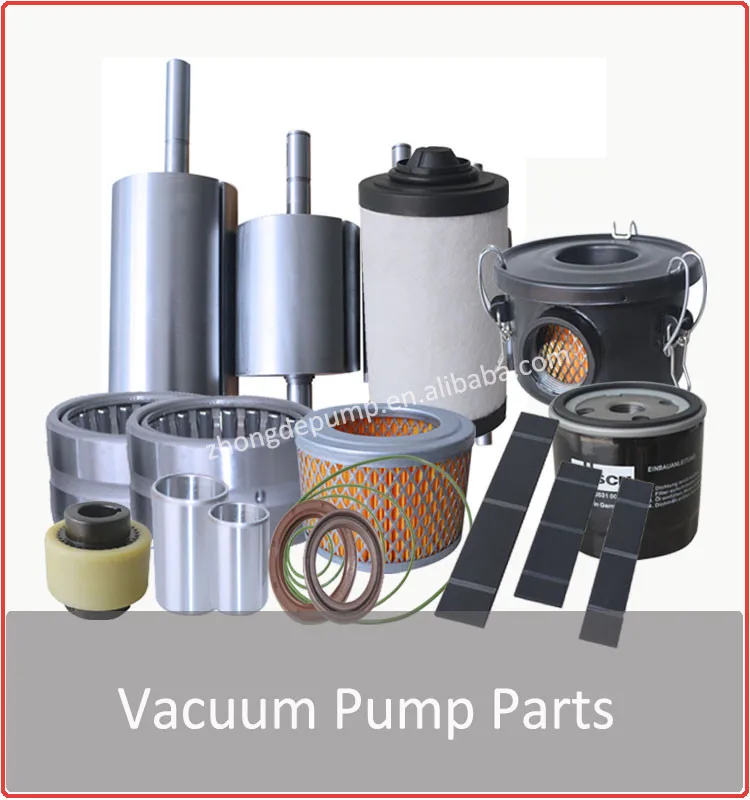

Our Main Products

-- 2BVA, 2BEA, 2BEC, 2SK, SK, SZ, SZB series water ring vacuum pump and compressor

-- 2SK-P1 series water ring pump air - two injection pump unit

-- RPP series of water jet pump

-- XD, 2X, 2XZ series rotary vane vacuum pump

-- W, WY, WLW, 2WLW series reciprocating vacuum pump

-- ZBK series vacuum pump

-- XGB series vortex pump, vacuum box of various specifications

xd vacuum pump -5.jpg xd vacuum pump -10.jpg xd vacuum pump -4.jpg xd vacuum pump -6.jpg xd vacuum pump -2.jpg



xd vacuum pump -9.jpg xd vacuum pump -7.jpg xd vacuum pump -3.jpg xd vacuum pump -8.jpg xd vacuum pump -1.jpg

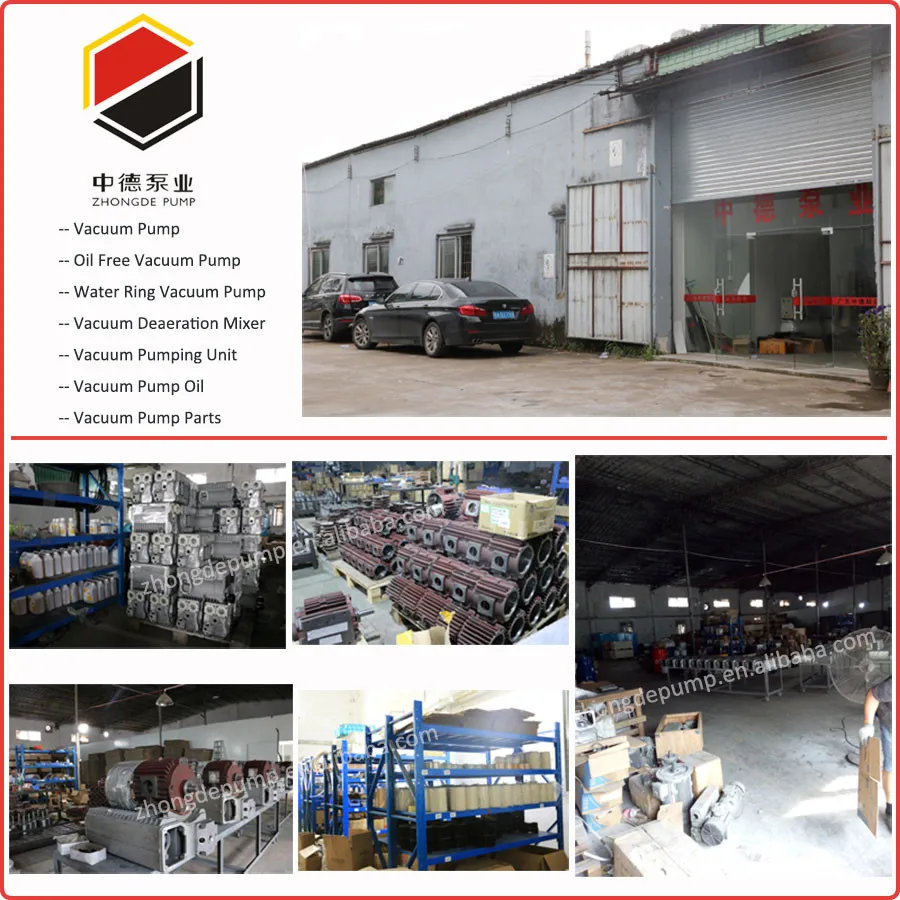

Company Information

Guangdong Zhongde Pump Manufacture Co., Ltd is specialized in producing, designing and installing of vacuum equipment. With its good maintenance and after-sale service, enjoy a good reputation among customers.

xd vacuum pump.jpg

Our Services

1- Stable and reliable product quality. Products have been through IS09001 certification. Product's quality surpass the same level products of Europe and America.

2- Products guarantee is one year

3- High efficient after-sales service team

4- Quickly respond
